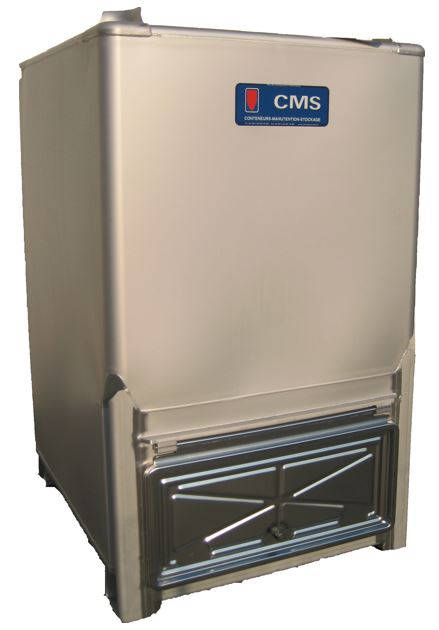

ENFRCMS stainless steel TOTESYSTEM® containers
The perfect match for high value dry food powder.
- Stainless steel AISI 304
- Up to 3100L capacity
- More than 3000 units in operation over the world
- No hollow body architecture
- No retention area
- Unique plastic cam door closing mechanism (no metal to metal contact, no risk of loosing parts in product)
- Internal welds polished up to Ra ≤ 0.8 µm
- Unmatched quality documentation (FDA, CE1935/2004 certificates, 3.1 stainless steel material certificates, individual factory test sheets...)
- Stainless steel AISI 304
- Up to 3100L capacity
- More than 3000 units in operation over the world
- No hollow body architecture
- No retention area
- Unique plastic cam door closing mechanism (no metal to metal contact, no risk of loosing parts in product)
- Internal welds polished up to Ra ≤ 0.8 µm
- Unmatched quality documentation (FDA, CE1935/2004 certificates, 3.1 stainless steel material certificates, individual factory test sheets...)

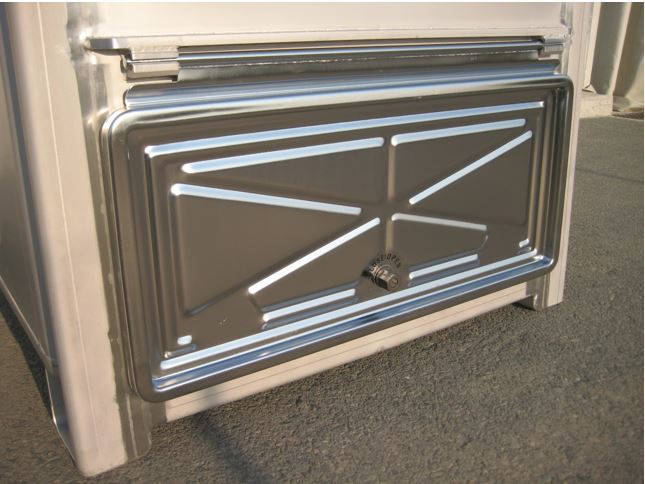

Quality in every details : door
Special stamped profile for increasing stiffness
White EPDM door gasket:
- extra low shore hardness,
- US FDA and EU CE1935/2004 compliant

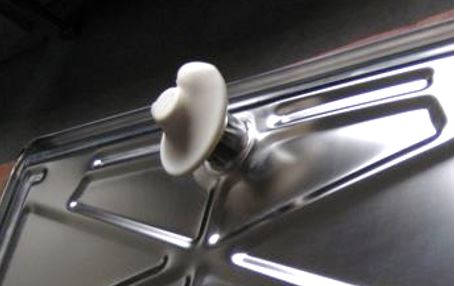

Unique plastic cam door locking mechanism:
- cam made of special plastic compound (high mechanical resistance as well as low friction coefficient) cast on the stainless steel bolt axis.
- No possible foreign body and no risk of parts falling into product
- No metal to metal contact
- High longevity
White EPDM door gasket:
- extra low shore hardness,
- US FDA and EU CE1935/2004 compliant
Unique plastic cam door locking mechanism:
- cam made of special plastic compound (high mechanical resistance as well as low friction coefficient) cast on the stainless steel bolt axis.
- No possible foreign body and no risk of parts falling into product
- No metal to metal contact
- High longevity

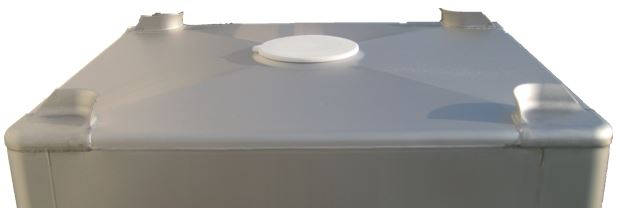

Quality in every details: top
Top lid in white EPDM compound:
- "non pocket type" prevent retention
- FDA and CE1935/2004 compliant
- slope for preventing retention
Enlarged inner stacking lugs:
- no hollow body construction (welded after top cutting)
- unbreakable
- enabling safer and easier stacking
- "non pocket type" prevent retention
- FDA and CE1935/2004 compliant
- slope for preventing retention
Enlarged inner stacking lugs:
- no hollow body construction (welded after top cutting)
- unbreakable
- enabling safer and easier stacking

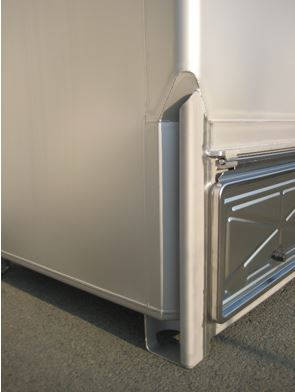

Quality in every details: feet
Welded front feet acting as internal deflectors for discharging process:
no product retention area inside the container.
Front and rear feet:
- No hollow body design
- Prevent powder retention and easy
to clean.
no product retention area inside the container.
Front and rear feet:
- No hollow body design
- Prevent powder retention and easy
to clean.

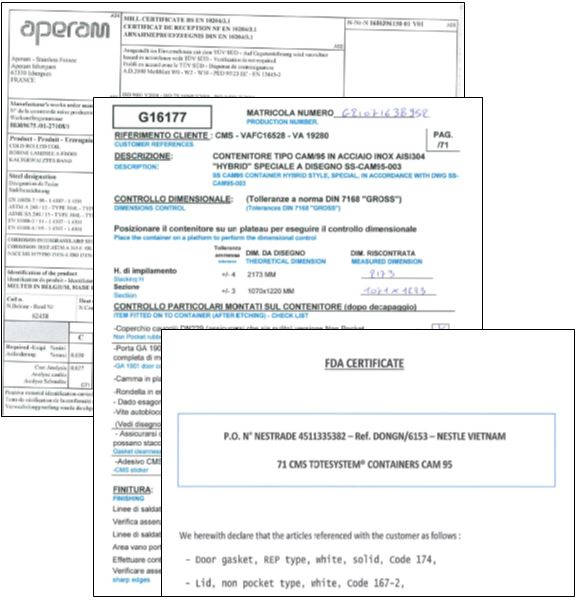

Unmatched quality documentation
All CMS TOTESYSTEM© containers can be delivered with:
- 3.1 material certificate according to EN10204
- FDA and/or CE1935/2004 compliance certificates for all non metallic parts
- Welding qualification documents (WPS, WPQR, welders certificates)
- Individual FAT test report including:
. Thorough visual inspection on all container parts (no coloration, no sharp edge, no defect allowed)
. Welds penetrating liquid test
.Individual water tightness test
- 3.1 material certificate according to EN10204
- FDA and/or CE1935/2004 compliance certificates for all non metallic parts
- Welding qualification documents (WPS, WPQR, welders certificates)
- Individual FAT test report including:
. Thorough visual inspection on all container parts (no coloration, no sharp edge, no defect allowed)
. Welds penetrating liquid test
.Individual water tightness test

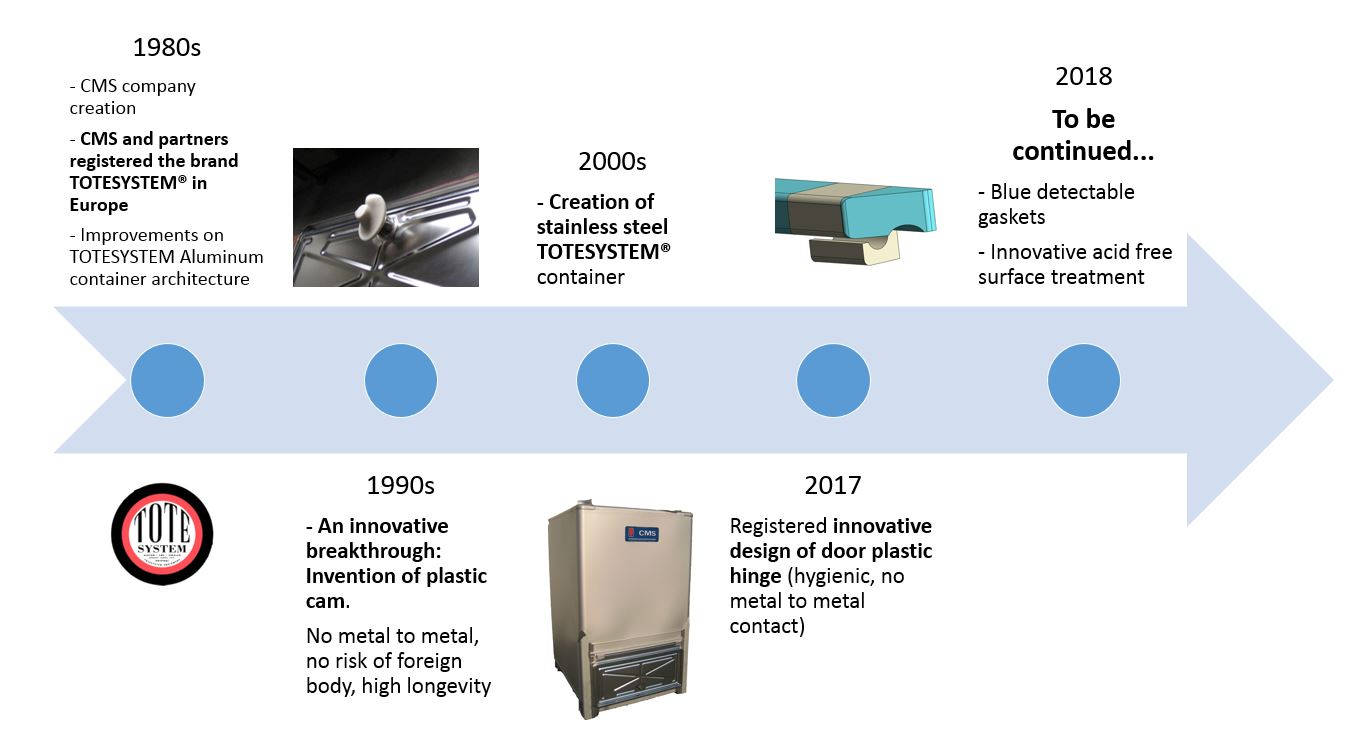

Four decades of innovation...
CMS Conteneurs Manutention Stockage and its partners: Alucon Bulk Systems Gmbh and Ginalco companies own all licenses, rights, patents, and trademark relating to TOTE®, TOTEBIN®, TOTESYSTEM®. Only containers and equipment with these brandnames are guaranteed by CMS and its partners to have good quality.
